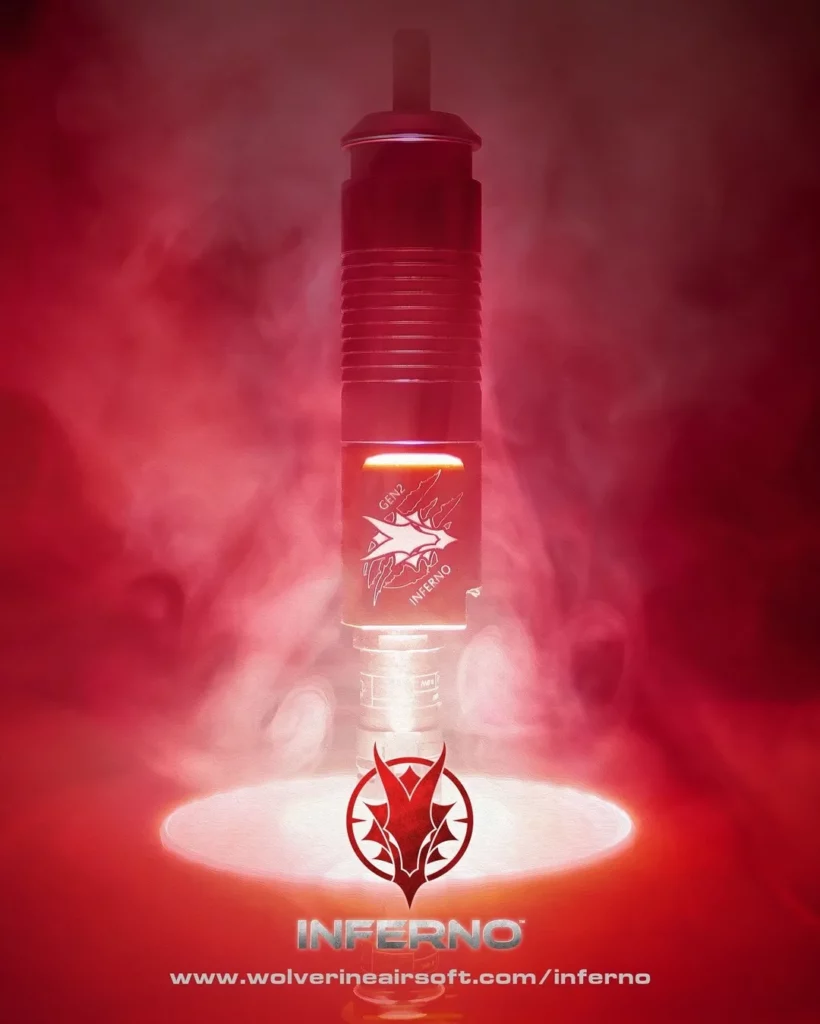

The INFERNO Gen 2 features a revolutionary single solenoid, independent poppet and nozzle design that sets a new standard for a drop in kit. Particularly, it is designed to solve the “open bolt problem”. It is a hybrid design which keeps the advantages of an open bolt system: easy tuning, no first round dry fire, efficiency, etc… and adds the simplicity of easier hop up tuning that closed bolt systems have traditionally offered. In addition, it further improves the efficiency over our previous systems by an estimated 10-15%.

Our kits include choice of our Spartan Electronics board or Gen 2 Premium FCU and everything you need to install the INFERNO Gen 2 in your gun platform.

SKU: N/A Category: Tags: , , , , , , , ,



  • Patent Pending independent poppet and nozzle design
  • Hybrid design allows pause between BB loading and BB firing
  • Improves hop up performance with a wide range of stock and aftermarket options
  • Still uses Wolverine Airsoft’s patented Imbalanced Poppet
  • Backwards compatible with all Wolverine Airsoft electronics.
  • Still uses bullet-proof direct solenoid fired design
  • NO ADDITIONAL CRITICAL O-RINGS–> No negative impact on reliability!
  • Estimated 10-15% efficiency improvement

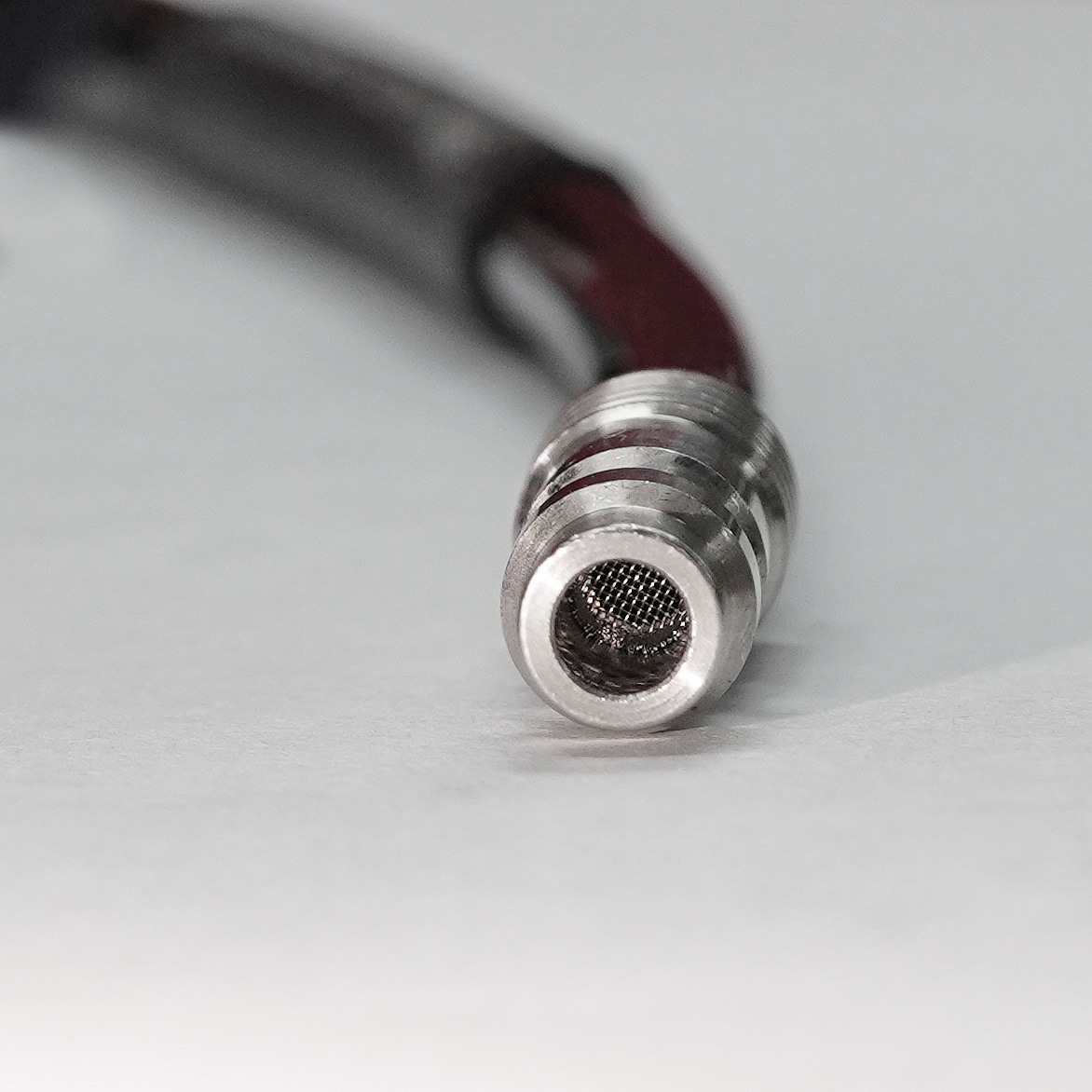

  • Integrated Filtered Line


  • Input Pressure: 60-140PSI  (Use with STORM Regulator for best performance!)
  • Output Energy: 1-3J Adjustable (build dependent)
  • ROF: 5-35RPS Adjustable
  • Battery Input: JST 6-8V
  • Dwell: Fully Adjustable
  • Electronics: Compatible with all Wolverine Airsoft Electronics

Additional information

Weight 0.5 lbs
Dimensions 4 × 2 × 2 in

V2(M4) + Spartan Electronics, V2(M4) + Premium Electronics, V3(AK) + Premium Electronics, M249 + Premium Electronics


Need help choosing the right kit for your gun? To determine which kit you need to purchase, see our Compatibility page. For further questions, contact

Kits Include

  • INFERNO HPA Engine
  • Grip Line with Integrated Filter
  • O-Ring Kit
  • 3″ x 2″ INFERNO Patch
  • Spartan Kit
    • Spartan electronics
    • Buffer tube adapter
  • V2 Premium Kit
    • Premium FCU
    • V2 trigger board
    • 14” wiring harness
    • Buffer tube adapter

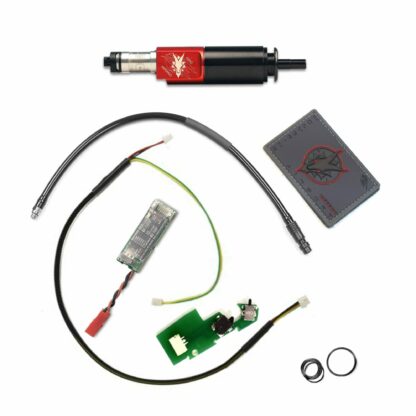

  • V3 Premium Kit
    • Premium FCU
    • V3 trigger board
    • 12” wiring harness
    • 1/16″ Drill bit
    • M2 0.89×4 Self-Tapping Screw
  • M249 Kit
    • Premium M249 FCU
    • M249 wiring harness

Owner's Manual

Technical Videos
