Description
Fire Mode Presets
- Standard MTW
- Semi / Full Auto
- Semi / 3-Round Burst
- Semi / 2-Round Burst
- Semi / Semi
- 2-Round Burst / Full Auto
- Shotgun
- Semi / Full Auto
- Semi / 3-Round Burst
- Semi / Semi
- Semi Anti-Spam / Semi Anti-Spam
- DMR
- Semi / Full Auto
- Semi / 3-Round Burst
- Semi / Semi
- Semi+2-Sec Delay / Semi+2-Sec Delay
- Heretic Programming
- Semi / Full Auto
- Semi / 3-Round Burst
- Semi / 2-Round Burst
- Semi / Semi
- Semi / Binary
*Boards sold in Germany are locked in Semi / Semi mode.
8 Quick / Easy ROF Presets
Select a preset from 10RPS to 33RPS by holding down the trigger as it fires three-round bursts until desired ROF is reached.
12 Quick/Easy Dwell Presets
Set dwell by holding down trigger as it fires once per second until drop in FPS is noticed, then double-tap to step back up one preset.
Includes

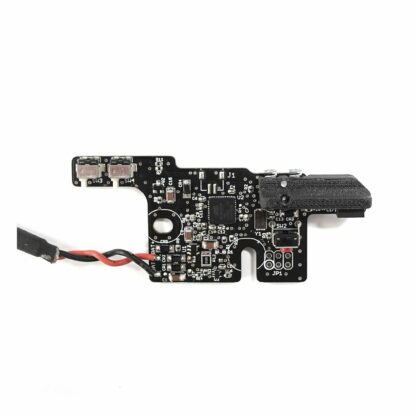

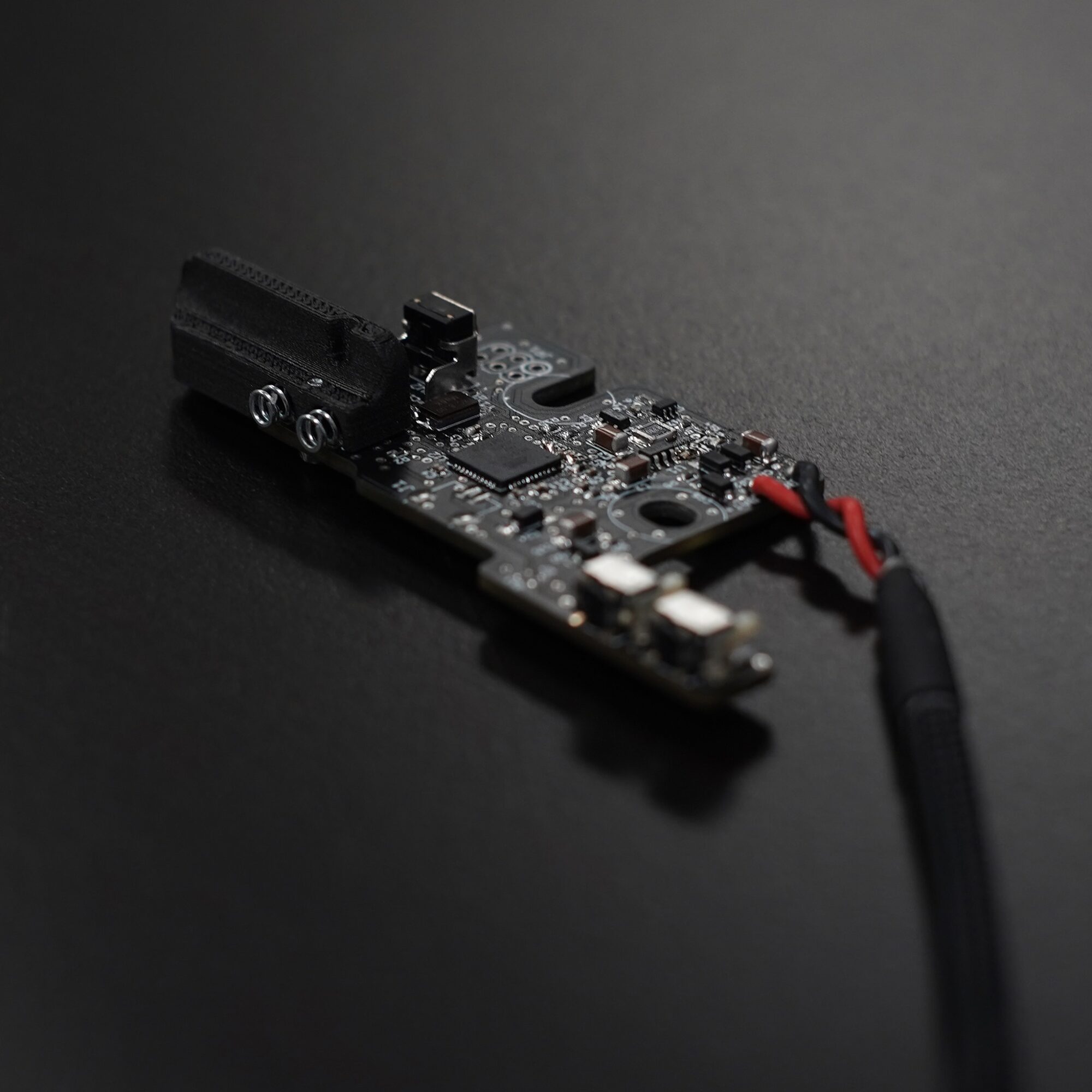

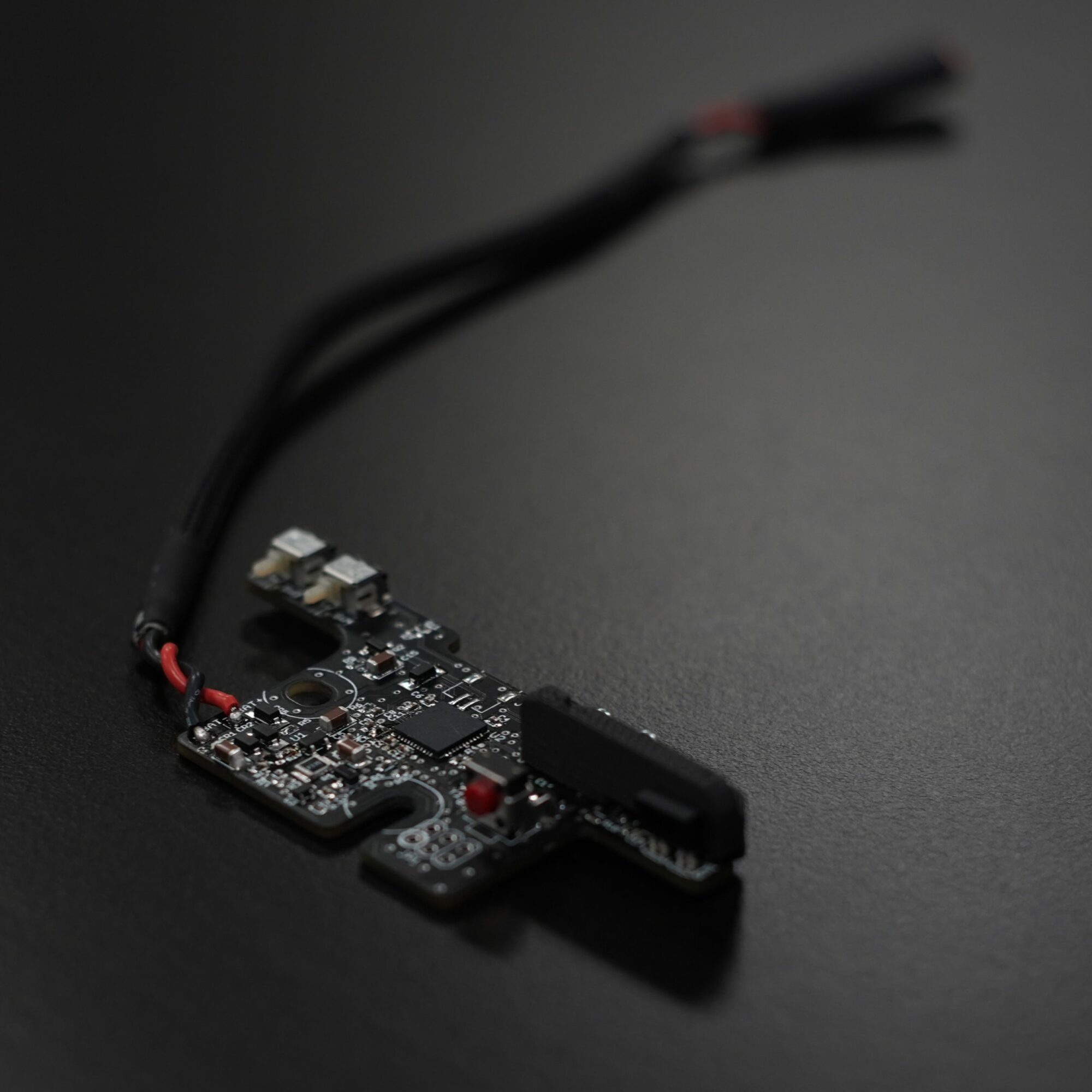

- Control Board (MTW-SA-404, MTW-SA-406, or MTW-SA-409)
Compatibility
| MTW M4 | MTW-9 | MTW-308 | MTW Shotgun |
|---|---|---|---|
| ✔ | ✔ | ✔ (See below) | Shotgun Firmware Only |
MTW-308 Compatibility
The MTW-308 is compatible with all firmware options, but ships standard with Shotgun/DMR firmware and set to DMR Mode. Replacement boards are shipped in Shotgun Mode and can be changed to DMR mode by following this guide: https://www.wolverineairsoft.com/knowledgebase/308-shotgun-firmware-configurations
Optical Selector Compatibility

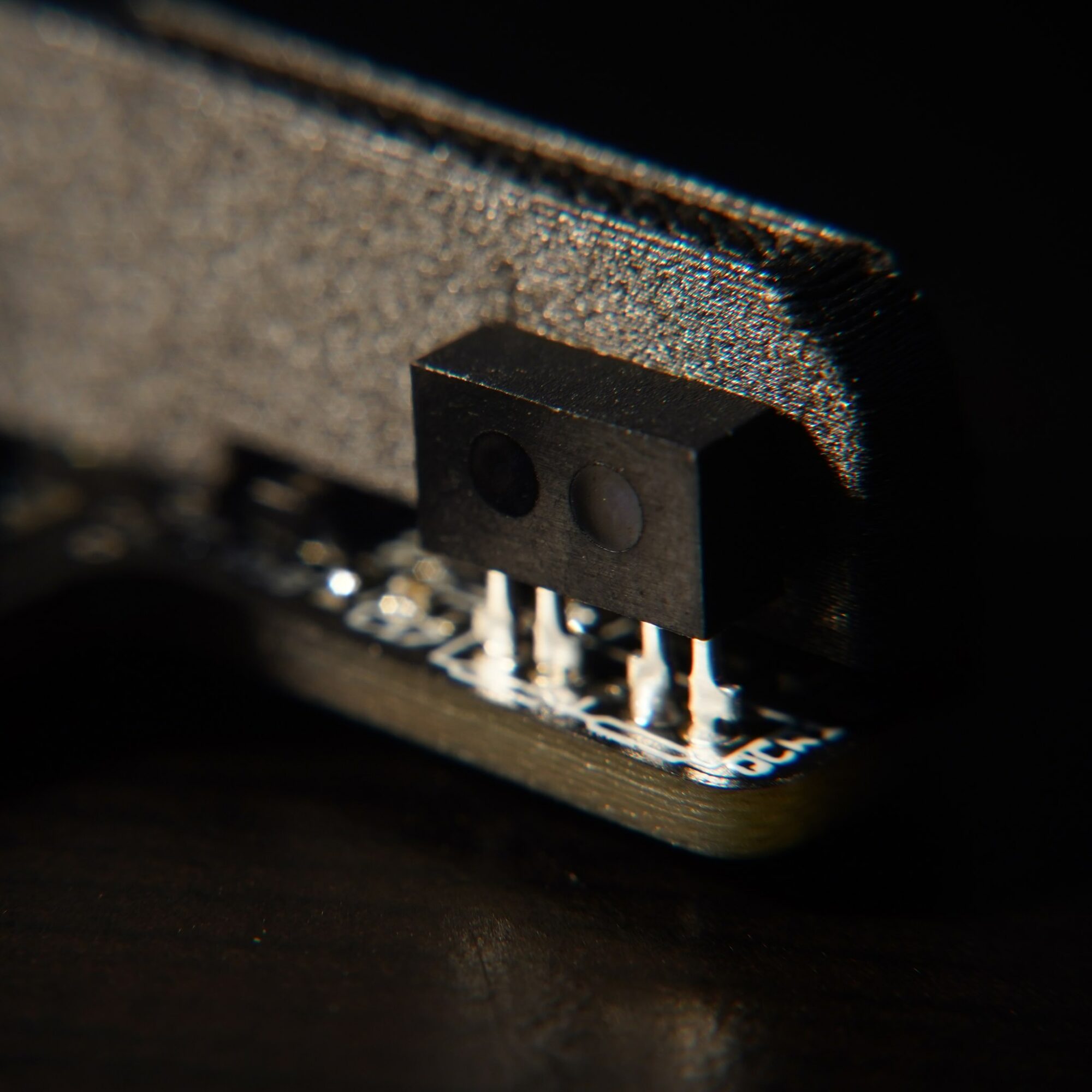

If you are replacing the control board for an MTW manufactured before Oct 1, 2021 (green board), you will need to modify your selector switch to work with the board’s optical select-fire sensor.
